States

State properties

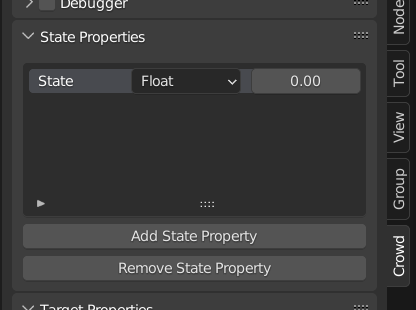

In the side panel of the CrowdSim node tree you can define State Properties. These state properties can be used to store state of an agent.

By pressing Add State Property you can add a new state property to the list. By pressing Remove State Property you can remove the highlighted state property. You can change the name of a state property by double clicking on its name.

A state property can be one of the next types:

• String

• Boolean

• Float

• Integer

• Countdown

You can also set a default value for the state properties you define.

A countdown property is a special type. Every frame its value is decremented until it reaches zero. Is Countdown Elapsed can be used to check if the property reached zero. With Randomize Countdown the variable can be reset.

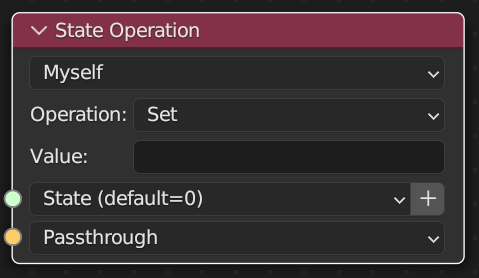

State Operation

With this node you can perform an operation - Add, Set, Subtract, Multiply - on a State property.

• State Property: State property to perform the operation on

• Operation: Type of operation to perform

  • Set: Update the property to the given value

  • Add: Add the given value to the property

  • Subtract: Subtract the given value from the property

  • Multiply: Multiply the property with the given value

• Value: The given value for the operation. When using Boolean values you should use 0 for false and 1 for true

Supported state operations

Type	Supported Operations
String	Set
Integer	Set, Add, Subtract, Multiply
Float	Set, Add, Subtract, Multiply
Countdown	Set, Add, Subtract, Multiply
Boolean	Set

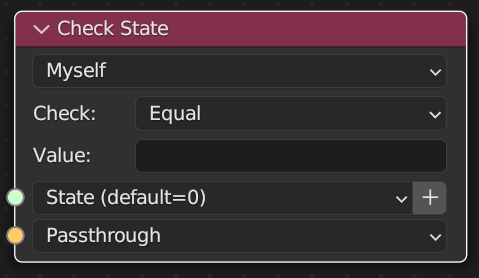

Check State

With this node you can check your State property against another value.

• State Property: State property to perform the operation on

• Check: Type of check to perform

  • Equal: Is the property equal to the given value

  • Less than: Is the property less than the given value

  • Greater than: Is the property greater than the given value

  • Is True: Is the property true

  • Is False: Is the property false

• Value: The given value for the operation. When using Boolean values you should use 0 for false and 1 for true

Supported state checks

Type	Supported Check
String	Equal, Less than, Greater than
Integer	Equal, Less than, Greater than
Float	Equal, Less than, Greater than
Countdown	Equal, Less than, Greater than
Boolean	Is True, Is False

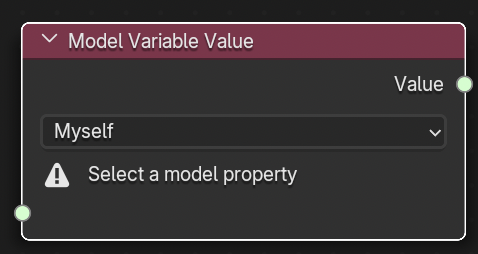

Model Variable Operation

With this node you can perform an operation - Add, Set, Subtract, Multiply - on

Model variables.

• Target Type: Agent to perform the operation on.

  • Myself: The operation will be performed on the incoming agent.

  • My target: The operation will be performed on an agent being targeted.

  • Targets me: The operation will be performed on agents that targets me.

• Target: The target property to check when target type is set to My target or Targets me.

• Operation: Type of operation to perform

  • Set: Update the property to the given value

  • Add: Add the given value to the property

  • Subtract: Subtract the given value from the property

  • Multiply: Multiply the property with the given value

• Value: The operand for the operation.

• Model Variable: Model variable to perform the operation on

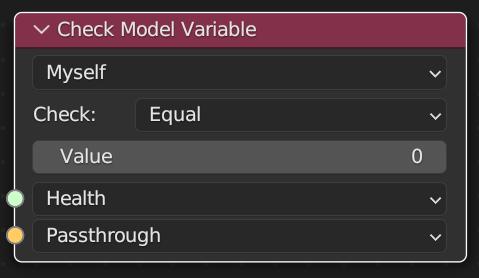

Check Model Variable

With this node you can check the value of Model variables.

• Target Type: On which agent should the operation be performed on. * Myself: The operation will be performed on the incoming agent. * My target: The operation will be performed on an agent being targeted. * Targets me: The operation will be performed on agents that targets me.

• Target: The target property to check when target type is set to My target or Targets me.

• All/Any: When target type is Targets me do all agents or just one agent need to pass the check. * Any Agent: This node returns Success when a single agent passes the check. * All Agents: This node returns Success when all agents that target me pass the check.

• Check: Type of check to perform * Equal: Is the property equal to the given value. * Less than: Is the property less than the given value. * Greater than: Is the property greater than the given value.

• Value: The value to check against.

• Model Variable: The model variable to check.

Check Frame Number

With this node you can check the frame number of a simulation.

• Check: Type of check to perform

  • Equal: Is the active frame number the same as the entered frame number.

  • Less than: Is the active frame number smaller than the entered frame number.

  • Greater than: Is the active frame number larger thatn the entered frame number.

• Frame number: Frame number to test against the actual frame.

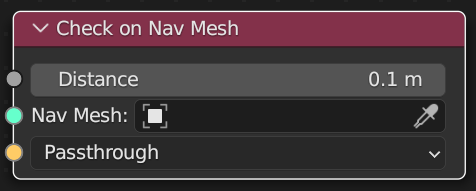

Check On Nav Mesh

Check if an agent is on a given navigation mesh.

• Distance: A threshold distance to still consider an agent on the navigation mesh.

• Nav Mesh: THe navigation mesh to consider.

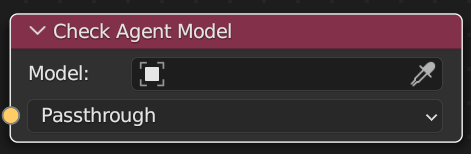

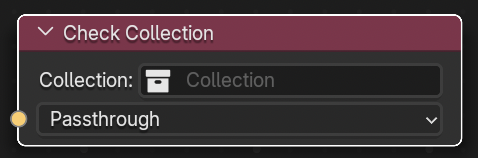

Check Agent Model

Check if an agent is a specific model/character.

• Model: Model to check against.

• Character: Character to check against. (only shown when the selected model is an armature.)

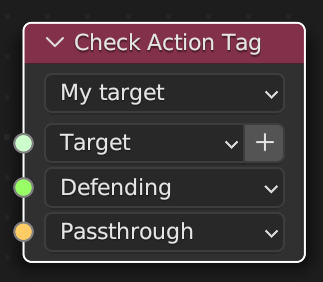

Check Action Tag

Check if a running animation action has a tag.

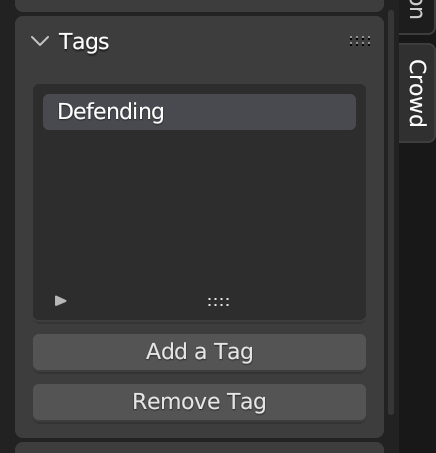

Tags can be configured for each action in the action editor side panel.

When an action is scheduled for an agent this tag would become active for an agent. The Check Action Tag node would return success when the tag is active for an agent.

• Target Type: On which agent should the tags be checked

  • Myself: Check the incoming agent.

  • My target: Check the agent that the incoming agent is targeting.

  • Targets me: Check the agents that targets me.

• Target: The target property to use when target type is set to My target or Targets me.

• Tag: The tag to check for.

Check Mesh Variation

Check if an agent has a given mesh variations

• Model: Model to check against.

• Character: Character to check against.

• Variation: Mesh variation to check against. The list of variation is build from the character configuration of the model.

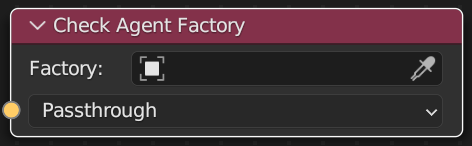

Check Agent Factory

Check if an agent is part of a specific factory

• Factory: Agent factory to check against.

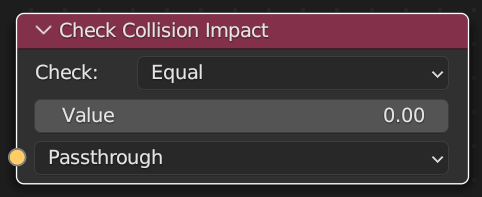

Check Collision Impact

Check the collision impact of the last intersection test.

• Check: The check to perform.

  • Equals: is the attribute equal to the value

  • Less than: is the attribute less than the value

  • Greater than: is the attribute greater than the value

• Value: The value to check against.

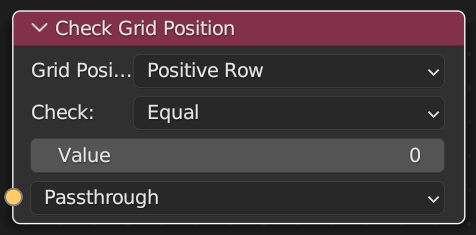

Check Grid Position

Check the position an agent has when created with a grid factory.

• Grid Position: The position of the agent when a grid distribution is applied.

• Check: The check to perform.

  • Equals: is the attribute equal to the value

  • Less than: is the attribute less than the value

  • Greater than: is the attribute greater than the value

• Value: The value to check against.

Set Speed Vector

With this node you can set the speed vector of agents.

• Direction: The direction to set.

• Velocity: The velocity to set.

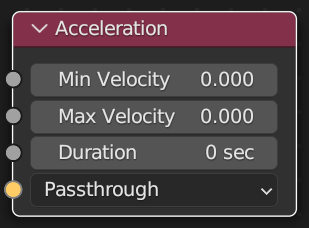

Acceleration

Change speed of the agent. With the Acceleration node it is possible to accelerate/decelerate to a specific speed within a given time. The node keeps running until the time limit has reached, or the given speed has been reached.

• Min Velocity: Minimum value when generating a velocity of the agent to reach.

• Max Velocity: Maximum value when generating a velocity of the agent to reach.

• Duration: The maximum time to try to reach the velocity.

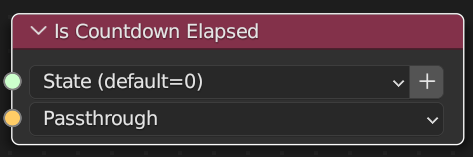

Is Countdown Elapsed

Check if a countdown state property reached zero

• State Property: State property to perform the operation on. Note that this node only works on countdown state properties.

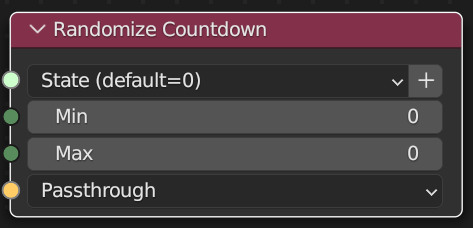

Randomize Countdown

Reset a countdown state property to a value. The new value will be between the given Min and Max

• State Property: State property to perform the operation on. Note that this node only works on countdown state properties.

• Min: Minimum value to give to the countdown property.

• Max: Maximum value to give to the countdown property.
